When it comes to finding the best EU triple-layer bushings in China for U.S. apparatus buyers, see no encouragement than EPEN. As a driving producer of high-quality plain orientation and wear plates, EPEN offers predominant triple-layer bushings that meet European Union measures, while giving uncommon value for American apparatus producers. These bushings combine toughness, exactness, and cost-effectiveness, making them the best choice for U.S. buyers looking for solid components for their apparatus. With EPEN's commitment to development and quality control, you can believe that their EU triple-layer bushings will provide extraordinary execution and life span in your applications.
EPEN EU tri-layer maintanence-free bushing
EU tri-layer maintanence-free bushing have a base of lower carbon steel, onto which a porous bronze layer is sintered. PTFE mixtures are impregnated into the intersice of this bronze layer after rolling process completed. Eu has good physical & mechanical properties, also has certainly chemical properties. It is suitable for rotary, oscillating movement with performance of self-lub. Anti-wear, lower firction, lower noise.
EU Structure
1. Self-lub. Layer PTFE Mixture 0.01-0.03mm. After rolling process completed, PTFE mixtures are filled in intersice of bronze layer. Under normal operation, Part of PTFE mixture on top layer will be removed and transferred on the mating surface, forms a physically lubricating film, which will reduced the firction coe. and protect the mating shaft.
2. Porous Bronze layer; The layer provides bonded strength of Self-Lub. Layer.
3. Steel Backing The layer provides load & thermal conductivity
4. Copper / Tin layer
EU Material category
EU Material Characteristics
| Max. Load Capacity |
|
|
| Static Load |
N/mm2 |
250 |
| Dynamic Load |
N/mm2 |
140 |
| Max. Speed |
|
|
| Dry Running |
m/s |
2.0 |
| Hydrodynamic Operation |
m/s |
>2 |
| Max. PV Value |
|
|
| Short-Term Operation |
N/mm2 · m/s |
3.6 |
| Continuous Operation |
N/mm2 · m/s |
1.8 |
| Coefficient of Friction |
μ |
0.03~0.25 |
| Operation Temperature Range |
℃ |
-195~280 |
| Thermal Conductivity |
W(m · k-1) |
40 |
| Coefficient of Thermal Expansion |
λST |
11 · 10K-1 |
EU Material Chemical Characteristic
| Type |
Water |
Sea
Water |
Air |
Alkaline
Solutions |
Neutral
Solutions |
Fuels&
Lubricatis |
Strong
Acid |
Weak
Acid |
| EU |
□ |
▲ |
□ |
□ |
★ |
★ |
▲ |
▲ |
| EU G |
□ |
▲ |
□ |
□ |
★ |
★ |
▲ |
▲ |
| EU H |
□ |
▲ |
□ |
□ |
★ |
★ |
▲ |
▲ |
| EU S |
□ |
▲ |
□ |
□ |
★ |
★ |
▲ |
▲ |
| EU B |
□ |
□ |
□ |
□ |
★ |
★ |
□ |
□ |
| EU 304/316 |
□ |
□ |
□ |
□ |
★ |
★ |
□ |
□ |
| EX |
□ |
▲ |
□ |
□ |
★ |
★ |
▲ |
▲ |
| ★Good □ Common ▲poor |
EU Bearings Size

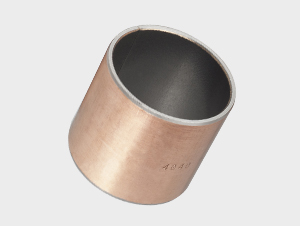

EU

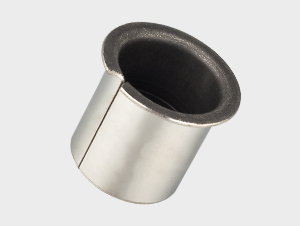

EU-F

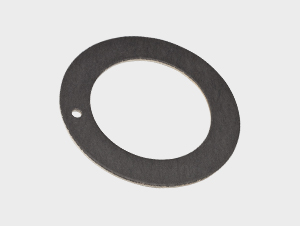

EU-WC
EU-S
2025-11-28 Latest Update:
Recently, the international standard proposal ISO/NP 25994: Spherical plain bearings – self-lubricating bearings of PTFE fabric liner type, led by Fujian Longxi Bearing (Group) Co., Ltd., has been officially approved and entered the formal drafting stage after the New Work Item Proposal (NP) voting process by ISO/TC4/SC7. This marks China's first successfully initiated international standard for self-lubricating bearings and is also the world's first product standard specifically targeting self-lubricating bearings of the PTFE fabric liner type. It signifies a historic breakthrough for China in the high-end technology field of self-lubricating bearings, transitioning from "technology follower" to "standard setter," and holds milestone significance.
Self-lubricating spherical plain bearings with PTFE fabric liners feature maintenance-free operation, self-lubrication, low friction, high load capacity, high wear resistance, and long service life. They are core foundational components in high-end sectors such as aerospace, advanced equipment, precision instruments, and humanoid robots. This standard systematically defines a series of key technical indicators for PTFE fabric liner-type self-lubricating bearings, including product structure, technical requirements, and testing methods. Previously, the technical standards and specification systems in this field were long dominated by multinational corporations from a few developed countries. The successful initiation of this international standard not only reflects China's globally leading technical expertise and mature industrial application experience in this area but also means that the design, manufacturing, and acceptance of such products worldwide will henceforth follow a standard led by China. This significantly enhances China's international discourse power and industrial competitiveness in the field of high-performance bearings.
Longxi Bearing Group led the entire process of this international standard initiation, from preliminary technical research and draft standard preparation to the submission of the formal proposal, presentation at the initiation meeting, and technical defense, laying a solid foundation for the successful approval of the standard. Moving forward, the group will complete the compilation tasks according to the planned requirements to ensure the smooth release of the standard.
Understanding EU Triple-Layer Bushings: A Game-Changer for U.S. MachineryThe Composition and Benefits of EU Triple-Layer Bushings
EU triple-layer bushings are built to give predominant execution in demanding mechanical applications. These bushings comprise three unmistakable layers, each serving a particular reason. The external layer is regularly made of steel, providing auxiliary judgment and load-bearing capacity. The center layer is composed of a sintered bronze fabric, which upgrades the bushing's capacity to hold oil and convey it equally. The internal layer highlights a low-friction polymer coating, lessening wear and amplifying the life expectancy of the bushing.
The interesting composition of EU triple-layer bushings offers a few focal points for U.S. apparatus buyers. These incorporate expanded stack capacity, improved wear resistance, and upgraded self-lubrication properties. The combination of materials permits smoother operation, decreased support requirements, and expanded benefit life, making them an amazing choice for different mechanical applications.
Applications and Industries Benefiting from EU Triple-Layer Bushings
EU triple-layer bushings discover far-reaching utilize over various businesses in the United States. In the car division, these bushings are fundamental components in suspension frameworks, directing components, and drivetrain assemblies. Development and agrarian apparatus depend on triple-layer bushings for rotating joints, water-powered barrels, and lifting components. The aviation industry utilizes these bushings in landing equipment frameworks and control surfaces.
Other businesses that benefit from EU triple-layer bushings incorporate fabric taking care of gear, wind turbines, and marine applications. The flexibility and unwavering quality of these bushings make them reasonable for any apparatus that requires low-friction, high-load-bearing components working in challenging environments.
How EU Triple-Layer Bushings Outperform Traditional Alternatives?
Compared to conventional single-layer or bimetal bushings, EU triple-layer bushings offer prevalent execution in a few key regions. The multi-layer development gives superior stack dispersion, decreasing push concentrations and minimizing wear. The self-lubricating properties of the internal polymer layer result in decreased contact and warm era, leading to smoother operation and amplified component life.
EU triple-layer bushings also show great resistance to erosion and chemical degradation, making them appropriate for utilize in unforgiving situations. Their capacity to work viably beneath tall loads and at hoisted temperatures outperforms that of ordinary bushings, giving U.S. apparatus buyers with a more dependable and stronger arrangement for their equipment.
Choosing the Right EU Triple-Layer Bushings for Your Machinery
Key Factors to Consider When Selecting EU Triple-Layer Bushings
When choosing EU triple-layer bushings for your apparatus, a few variables ought to be taken into account. Stack capacity is a pivotal thought, as it determines the bushing's capacity to withstand the forces applied during operation. The working environment, including temperature ranges and exposure to contaminants, ought to also be assessed to ensure the bushing's materials are suitable for the intended application.
Dimensional exactness and resistance are basic for legitimate fit and work inside your apparatus. Consider the required clearances, surface wrap-up, and any extraordinary highlights such as grease grooves or mounting spines. Furthermore, evaluate the bushing's compatibility with your existing grease frameworks and upkeep plans to guarantee consistent integration into your operations.
Understanding Performance Specifications and Quality Standards
To make an educated choice, U.S. apparatus buyers ought to familiarize themselves with the execution details and quality measures related to EU triple-layer bushings. See for bushings that comply with important worldwide benchmarks, such as ISO 3547 for plain heading or Noise 1494 for sintered metal heading. These measures guarantee steady quality and execution over different manufacturers.
Pay consideration to key execution pointers such as PV values (pressure-velocity limits), coefficient of contact, and wear rates. Legitimate producers like EPEN give nitty gritty specialized information sheets and execution bends to offer assistance you evaluating the appropriateness of their bushings for your particular applications. Do not delay to ask for extra data or clarification on any specialized determinations to guarantee you're making the best choice for your machinery.
Customization Options for Specialized Machinery Requirements
While standard catalog sizes of EU triple-layer bushings cover a wide range of applications, a few apparatuses may require custom arrangements. Driving producers offer customization alternatives to meet particular requirements. This may incorporate extraordinary measurements, one-of-a-kind geometries, or alterations to the fabric composition to upgrade execution in specific working conditions.
When considering customization, work closely with the manufacturer's building group to examine your machinery's unique needs. Give point-by-point data almost the application, including stack profiles, natural components, and any space imperatives. A legitimate producer will be able to offer master counsel and create a customized EU triple-layer bushing arrangement that optimizes execution and life span for your particular machinery.
Sourcing EU Triple-Layer Bushings from China: What U.S. Buyers Need to Know
The Advantages of Partnering with Chinese Manufacturers
Sourcing EU triple-layer bushings from Chinese producers offers a few points of interest for U.S. apparatus buyers. China's well-established fabricating framework and mastery in creating accurate components result in high-quality items at competitive costs. Chinese producers frequently have access to progressed generation advances and materials, permitting them to meet or surpass international quality standards.
Partnering with Chinese providers can moreover give more noteworthy adaptability in terms of production volumes and lead times. Numerous Chinese producers, including EPEN, have the capacity to handle both large-scale orders and smaller custom runs, catering to the assorted needs of U.S. apparatus buyers. Also, the time distinction between China and the United States can be utilized to streamline communication and speed up extension timelines.
Navigating Quality Control and Certification Processes
When sourcing EU triple-layer bushings from China, it's pivotal to prioritize quality control and certification forms. See for producers that have executed vigorous quality administration frameworks and hold significant certifications such as ISO 9001. These certifications illustrate a commitment to steady quality and nonstop enhancement in fabricating processes.
Request nitty-gritty data around the manufacturer's quality control methods, including fabric testing, dimensional assessments, and execution approval. Legitimate providers ought to be able to give test reports and certificates of similarity for their products. Consider orchestrating manufacturing plant reviews or third-party assessments to confirm the manufacturer's capabilities and guarantee compliance with your particular quality requirements.
Overcoming Language and Cultural Barriers in Business Relationships
Building effective commerce connections with Chinese producers may require exploring dialect and social contrasts. Numerous legitimate Chinese providers, like EPEN, have English-speaking staff devoted to universal deals and client back. Be that as it may, it's advantageous to approach communication with persistence and clarity, utilizing basic language and avoiding expressions or colloquialisms that may not be deciphered well.
Understanding Chinese trade culture can also offer assistance in cultivating more grounded associations. Be arranged for a more relationship-oriented approach to commerce, where belief and individual associations play a noteworthy part. Regard for pecking order and an inclination for roundabout communication are common in Chinese trade culture. By illustrating social affectability and an eagerness to construct long-term connections, U.S. apparatus buyers can build up productive collaborations with Chinese producers of EU triple-layer bushings.
Conclusion
EU triple-layer bushings from China offer U.S. apparatus buyers a fabulous combination of quality, execution, and value. By understanding the one-of-a-kind benefits of these components and carefully selecting a legitimate producer like EPEN, American companies can improve the unwavering quality and proficiency of their apparatus. With appropriate investigation, clear communication, and consideration to quality control, sourcing EU triple-layer bushings from China can give a competitive edge in the U.S. apparatus advertise. As the request for high-performance components proceeds to develop, collaborating with inventive Chinese producers guarantees access to cutting-edge bushing innovation and skill.
FAQs
1. What makes EU triple-layer bushings superior to traditional bushings?
EU triple-layer bushings offer improved load capacity, wear resistance, and self-lubrication properties due to their unique three-layer construction.
2. Are Chinese-made EU triple-layer bushings compliant with international standards?
Reputable Chinese manufacturers like EPEN produce bushings that meet or exceed international quality standards such as ISO and DIN.
3. Can I get custom EU triple-layer bushings for my specific machinery needs?
Yes, many Chinese manufacturers offer customization options to meet specialized requirements in terms of dimensions, materials, and performance specifications.
4. How can I ensure the quality of EU triple-layer bushings sourced from China?
Look for manufacturers with ISO certifications, request detailed quality control information, and consider third-party inspections or factory audits.
Expert EU Triple-Layer Bushings Manufacturer | EPEN
EPEN stands out as a leading manufacturer of EU triple-layer bushings, offering unparalleled quality and customization options for U.S. machinery buyers. Our state-of-the-art production facilities and expert engineering team ensure that every bushing meets the highest standards of performance and durability. With a commitment to innovation and customer satisfaction, EPEN is your trusted partner for all your plain bearing needs. Contact us at epen@cnepen.cn to discover how our EU triple-layer bushings can enhance your machinery's performance and reliability.
