The Critical Role of Plain Bearings in Wind Turbines

In the quest for renewable energy, wind turbines stand as monumental marvels of engineering. While the blades and generators often capture the spotlight, the unsung heroes ensuring their smooth, reliable, and efficient operation are the components within—particularly plain bearings. Their role is not just supportive but fundamentally critical to the turbine's performance, longevity, and economic viability.

Plain bearings play a crucial role in the efficient operation and longevity of wind turbines. The rotation of the shafts, the reduction of friction, and the smooth movement of different elements of the turbine are all dependent on these seemingly insignificant components. Wind turbines rely heavily on plain bearings for the main shaft, yaw, and pitch systems, which greatly enhance their performance and reliability. The renewable vitality showcase depends on them intensely due to their low-friction execution, capacity to work in unforgiving settings, and sturdiness. It is incomprehensible to emphasize the centrality of high-quality plain orientation in the development and upkeep of wind turbines, given the progressing extension of wind vitality.

What are Plain Bearing(Sliding Bearing)?

Plain bearings (also known as sliding or sleeve bearings) are the simplest type of bearing. Unlike rolling-element bearings (ball or roller bearings), they operate on a principle of sliding contact. They typically consist of a bearing surface, often made of a multi-layer composite material, with no moving parts. This surface is designed to support a load while allowing relative motion with minimal friction.

Where Are Sliding Bearing(plain bearing) Used in a Wind Turbine?

Sliding bearing/Plain bearings are deployed in several high-stress locations within a wind turbine, each with unique demands:

Rotor Blade Pitch and Yaw Systems: This is their most crucial application.

Pitch Bearings: Located at the root of each blade where it connects to the hub. They allow the blades to rotate ("pitch") to optimize their angle to the wind, controlling power output and protecting the turbine from overspeed during high winds.

Yaw Bearings: Situated between the nacelle (the housing that contains the generator) and the tower. They enable the entire nacelle to rotate and face the wind direction as it changes.

Main Shaft Support: In some turbine designs, especially larger models, massive plain bearings are used to support the low-speed main shaft, handling immense radial and axial loads from the rotor.

Why Are Sliding Bearing(plain bearing)So Critical?

The extreme operating conditions of a wind turbine make sliding bearing/plain bearings the superior choice for these key applications:

High Load-Carrying Capacity: Sliding bearing/Plain bearings have a large contact area, allowing them to support the enormous static and dynamic loads generated by massive rotor blades and gusting winds far better than an equivalently sized rolling-element bearing. They are exceptionally good at handling shock loads.

Durability and Long Service Life: Designed for a service life of 20+ years, plain bearings are built to last. Their simple, robust construction is less prone to failure modes like brinelling (surface damage) that can affect roller bearings under heavy static loads when the turbine is stopped.

Cost-Effectiveness for Large Diameters: For the large diameters required in pitch and yaw systems (often several meters), manufacturing a seamless ring of a rolling-element bearing is incredibly complex and expensive. Plain bearings, which can be segmented, are a more economical solution.

Design Flexibility and Compactness: Their design allows for integration into tight spaces and can be engineered to handle combined loads (radial, axial, and moment loads) simultaneously within a single bearing unit, simplifying the overall turbine design.

Maintenance and Predictability: While they require lubrication, their wear is often gradual and predictable, allowing for condition monitoring and planned maintenance rather than sudden, catastrophic failure.

The Fundamental Functions of Plain Bearings in Wind Turbines

Load-Bearing Capabilities

Plain bearings in wind turbines are engineered to handle substantial loads. The massive rotor and blades, which can weigh several tons, rely on these parts to hold their weight. For example, the rotor assembly's weight and wind loads produce axial and radial forces, which the main shaft bearing must resist. To provide long-term dependability and minimize early wear, plain bearings are engineered with particular materials and geometries to disperse these stresses uniformly.

Wind turbines' plain bearings also frequently use modern materials like bimetal alloys or metal-plastic composites. In comparison to more conventional bearing materials, these ones are far better at supporting loads. They can withstand the cyclic loads and occasional shock loads that occur during turbine operation, particularly during start-up, shut-down, and sudden wind gusts.

Friction Reduction

One of the primary functions of plain bearings in wind turbines is to minimize friction between moving parts. This is of utmost importance for multiple reasons. First, increased efficiency in converting wind energy into electrical power is a direct result of less friction. As a second benefit, reduced friction implies less wear and tear on components, which means the turbine lasts longer between repairs.

The reduced friction in plain bearings is the result of meticulous material selection and engineering of the bearing surfaces. Even when subjected to heavy loads, many contemporary plain bearings utilized in wind turbines are able to self-lubricate by keeping a thin layer of lubricant between their surfaces. Because routine maintenance is sometimes difficult and expensive, this self-lubricating feature is especially useful in offshore or distant wind farms.

Environmental Adaptability

Wind turbines operate in diverse and often harsh environments, from scorching deserts to frigid arctic regions, and even offshore in corrosive saltwater environments. Plain bearings must be able to function reliably across a wide range of temperatures and environmental conditions. The materials used in these bearings are selected for their ability to maintain their properties and performance under such varied conditions.

For instance, some plain bearings incorporate special coatings or surface treatments to enhance their resistance to corrosion, a critical feature for turbines in coastal or offshore locations. Others are designed with materials that can withstand extreme temperature fluctuations without losing their dimensional stability or load-bearing capacity. The capacity of wind turbines to function efficiently and reliably in almost any area is a result of their environmental adaptability, which is helping to expand wind energy globally.

Critical Applications of Plain Bearings in Wind Turbine Components

Main Shaft Bearings

The main shaft of a wind turbine is a critical component that transfers the rotational energy from the rotor to the generator. Plain bearings play a vital role in supporting this shaft, ensuring its smooth rotation while withstanding enormous loads. These bearings must be exceptionally durable and capable of operating reliably for extended periods with minimal maintenance.

Main shaft plain bearings in wind turbines are often designed as large-diameter, split-type bearings to facilitate installation and maintenance. Hydrodynamic lubrication systems and other innovative features can increase their load-carrying capacity and decrease wear. Special surface treatments can also be used. For the wind turbine to work efficiently and last as long as possible, these bearings must be well-aligned and well-lubricated.

Yaw System Bearings

The yaw system in a wind turbine is responsible for rotating the nacelle and rotor to face the wind direction, optimizing energy capture. Plain bearings in the yaw system must allow for smooth, controlled rotation while supporting the substantial weight of the nacelle and rotor assembly. These bearings often take the form of large-diameter slewing rings or segmented bearings.

Yaw system plain bearings require excellent low-speed performance and the ability to resist fretting corrosion, which can occur due to small oscillatory movements caused by wind fluctuations. Many of these bearings incorporate self-lubricating materials or special lubricant reservoirs to ensure consistent performance with minimal maintenance requirements. The design of these bearings must also account for the potential misalignment that can occur due to tower deflection or foundation settlement.

Pitch System Bearings

The pitch system in wind turbines adjusts the angle of the rotor blades to control power output and protect the turbine from excessive wind speeds. Plain bearings in the pitch system must allow for precise, controlled rotation of each blade while withstanding significant loads and moments. These bearings typically operate intermittently but must respond quickly and accurately when called upon.

Pitch system plain bearings often utilize advanced composite materials that offer a combination of high load capacity, low friction, and excellent wear resistance. The self-lubricating properties of these materials are particularly beneficial in this application, as they can maintain their performance even during long periods of inactivity. Some pitch bearings also incorporate special sealing systems to protect against contamination from environmental factors such as dust, moisture, or salt spray in offshore applications.

The Engineering Challenges

The use of plain bearings in such a critical environment is not without its challenges, which have been overcome through advanced engineering:

Friction and Lubrication: Sliding contact inherently has higher friction than rolling contact. This is mitigated by using self-lubricating composite materials (e.g., PTFE/graphite linings on a steel backing) and sophisticated, automated centralized lubrication systems that deliver grease precisely to the sliding surface at scheduled intervals.

Corrosion and Contamination: Located offshore or in remote areas, turbines are exposed to moisture, salt, and dirt. Bearings are sealed with advanced labyrinth or rubber seals to protect the critical sliding surfaces from contaminants.

Operational Demands: They must perform reliably across a vast temperature range, from freezing Arctic conditions to desert heat, and while subjected to constant vibration and oscillating movements (rather than continuous rotation)

Conclusion

When it comes to the effectiveness, constancy, and life expectancy of cutting edge wind turbines, plain orientation are an fundamental component. These heading are significant to the operation of wind turbines since they handle overwhelming loads on the primary shaft and permit for exact control of the yaw and pitch frameworks. With wind power continuing to grow as an important renewable energy source, the importance of novel sliding bearing/ plain bearings of the highest quality is critical. Wind turbines are already quite efficient, and future improvements in materials, monitoring systems, and lubrication technologies should make them even more so.

FAQs

1. What are the main types of plain bearings used in wind turbines?

The main types include metal-plastic composite bearings, bimetal bearings, and single metal sliding bearings. These are used in various components such as the main shaft, yaw system, and pitch system.

2. How do plain bearings contribute to wind turbine efficiency?

The utilize of plain heading makes operation smoother and diminishes vitality misfortune by lessening grinding between moving components. The result is a boost in the generally productivity and control generation of the turbine.

3. What are the challenges in maintaining plain bearings in offshore wind turbines?

Corrosion from saltwater, inaccessibility for maintenance, and severe weather are some of the problems that offshore turbines encounter. To solve these problems, specialized materials and designs are employed.

Choose EPEN for Your Wind Turbine Plain Bearing Needs

As a leading sliding bearing/plain bearing manufacturer, Jiashan Epen Bearing Co., Ltd. offers high-quality solutions for wind turbine applications. Our metal-plastic composite bearings and bimetal bearings are designed to meet the demanding requirements of the renewable energy sector. With our commitment to continuous research and development, we provide innovative, durable, and efficient plain bearings that enhance wind turbine performance. Contact us at epen@cnepen.cn to learn how our products can optimize your wind energy projects.

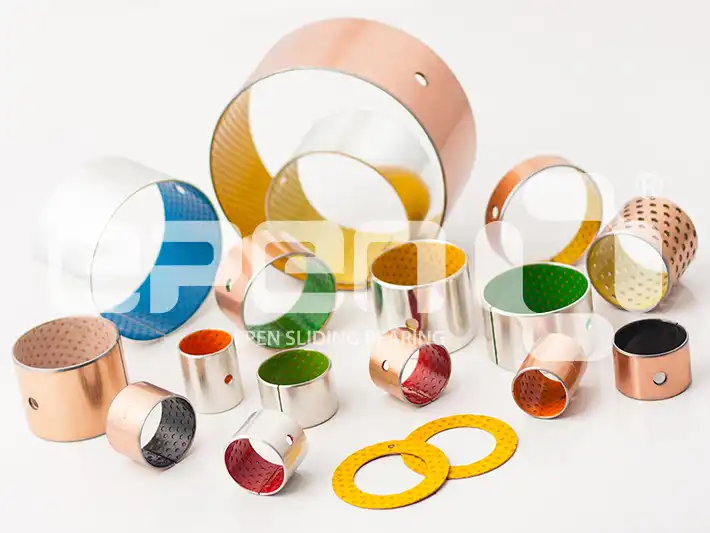

EPEN EX SLIDING BEARING
