The installation process for EMT plain bearings may seem straightforward, yet each step requires precise control to prevent bearing damage or compromised equipment performance due to improper assembly. The standard installation procedure consists of the following three key steps:
Basic Installation Methods for EMT Bushing /Plain Bearings
1. Positioning and Support
Before installation, correctly position the plain bearing within the housing or retaining component. This step primarily ensures the bearing is properly located and will not shift during the assembly process.
2. Inserting the Guide Mandrel
Select a precision-machined mandrel with a diameter close to the bearing's inner diameter and insert it slowly into the bore of the plain bearing. This step ensures no radial pulling or stress concentration occurs during installation, helping to maintain the geometric accuracy of the inner hole.
3. Even Press-Fitting and Securing
Apply external force (preferably using a hydraulic press) evenly around the bearing to press-fit it securely into the housing bore. Striking the bearing itself is strictly prohibited during this process to prevent deformation or damage.
II. Key Considerations During Plain Bearing Installation
To ensure optimal performance after installation, users are advised to strictly adhere to the following considerations before, during, and after assembly:
1. Pay Attention to Housing Material and Structural Strength
If the housing bore is made from materials prone to deformation, such as aluminum alloy or thin-walled structures, it may deform during press-fitting due to uneven force distribution. It is recommended to communicate the operating conditions to the supplier in advance to select an appropriate installation process or structural adjustment.
2. Ensure Proper Shaft End Chamfering
To prevent scratching the bearing's inner wall during assembly, the shaft end must be properly chamfered and smoothed. Recommended shaft materials include bearing steel, S45C, or SUS304, with a surface hardness of HRC40 or higher. The surface roughness should be controlled between Ra 0.4~0.8, and hard chrome plating can be applied to enhance wear resistance.
3. Control Shaft Dimensional Tolerances
Different operating conditions require varying shaft tolerance grades:
High-precision applications: g6, f7, f8
General high-load applications: d8
General low-load applications: e7
Selecting the correct tolerance grade effectively improves the stability of the fit between the bearing and the shaft.
4. Maintain a Clean Installation Environment
Before installation, always check that the bearing bush and housing bore surfaces are clean. Remove any foreign particles to avoid scratches, indentations, or abnormal clearances during assembly, which could affect subsequent performance.
5. Use Gentle Installation Methods
It is recommended to use a well-fitted mandrel and a hydraulic press for smooth, even pressing. Avoid using hammers or forceful striking methods to prevent bearing deformation, eccentricity, or out-of-roundness.
6. Apply Appropriate Lubrication
To reduce run-in time and improve initial operational efficiency, a suitable amount of lubricating oil or grease can be applied to the shaft surface. However, note that for heavy-load or reciprocating motion applications, excessive lubrication should be avoided to prevent the lubricant from causing bush loosening.
III. Summary
The installation of plain bearings is a seemingly simple yet critical technical process. Every detail can significantly impact the long-term stable operation of the equipment. From material selection to installation tools, from assembly methods to lubrication treatment, each aspect must be given high importance to ensure every procedure complies with specifications.

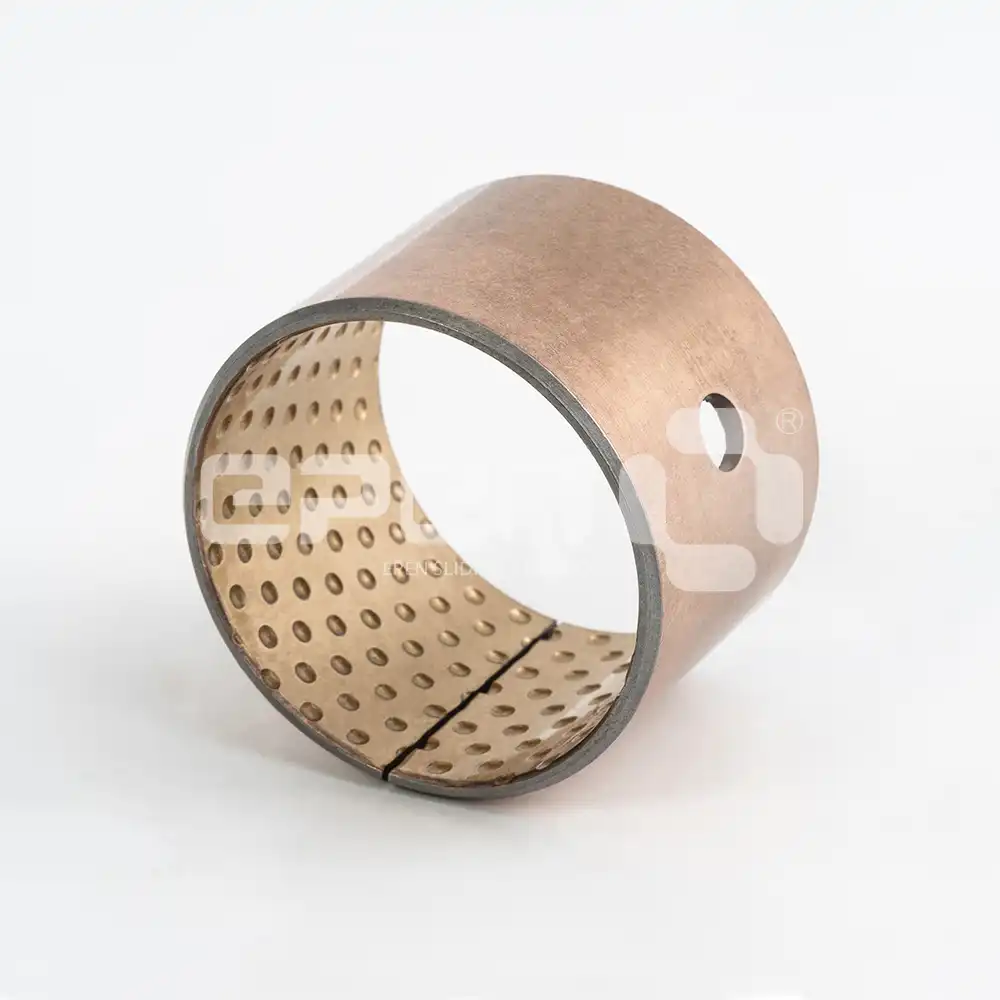

EPEN EMT Bushing
FAQs
1. What are the main advantages of using EMT bushings?
EMT bushings offer excellent load-bearing capacity and are suitable for high-load, low-speed applications. They combine the strength of steel with the low-friction properties of alloy lining materials.
2. How often should EMT bushings be replaced?
The replacement frequency depends on the application, operating conditions, and maintenance practices. Regular inspections and monitoring can help determine when replacement is necessary.
3. Can EMT bushings be customized for specific applications?
Yes, EMT bushings can be customized with features like oil grooves, holes, or indentations to suit specific application requirements.
