Material Selection and Properties for Extreme Conditions
1. Material Selection
The bearing material must retain its strength, resist wear, and resist seizure at elevated temperatures.
High-Temperature Stability: Standard babbitt (white metal) loses strength above 150°C. Suitable alternatives include:
Copper-Based Alloys: Bronze (e.g., C93200/SAE 660) is common, but for extreme conditions, copper-nickel or copper-beryllium alloys offer better strength and corrosion resistance.
Silver-Based Alloys: Silver overlays on a steel backing provide excellent anti-friction properties, high thermal conductivity, and good performance up to 540°C. They are often used in aerospace and critical applications.
High-Temperature Polymers: Materials like Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) filled with carbon or graphite, and Polyimide (e.g., Vespel) can operate up to 300-315°C. They are self-lubricating but have lower load capacity and thermal conductivity.
Solid Lubricant Composites: Materials impregnated with graphite, molybdenum disulfide (MoS₂), or other solid lubricants are essential when liquid lubrication is impossible. These composites provide a continuous lubricating film at high temperatures.
Specialty Alloys & Coatings: Tool steels, stainless steels, or nickel-based superalloys (e.g., Inconel) with specialized wear-resistant coatings (e.g., Tribaloy) are used for the most severe conditions.
2. Lubrication
Lubrication is the most critical factor, as conventional oils and greases will oxidize, degrade, or carbonize.
Solid Film Lubricants:
Graphite and MoS₂: Effective at very high temperatures (graphite up to 500-600°C in air). Their layered structure provides low shear strength. A continuous supply or impregnation within the bearing matrix is key.
Advanced Solid Lubricants: PTFE-based coatings or soft metallic films (e.g., gold, silver) are used in vacuum or inert atmospheres.
High-Temperature Oils and Greases:
Synthetic oils (e.g., perfluoropolyethers - PFPEs, silicone oils) and greases with high-temperature thickeners (e.g., clay, PTFE) can extend the range up to 300°C, but their long-term stability is a concern.
Gas Lubrication:
In clean environments, inert gases like nitrogen or argon can be used as a lubricant, forming a hydrodynamic film. This requires extremely precise manufacturing and is sensitive to load changes.
3. Thermal Management
Controlling operating temperature is vital to prevent material and lubricant failure.
Thermal Expansion: The different coefficients of thermal expansion (CTE) between the shaft, bearing, and housing must be carefully calculated. Mismatched CTE can lead to:
Clearance Loss: Bearing expansion can reduce operating clearance, leading to seizure.
Clearance Gain: Housing expansion can increase clearance, reducing load capacity and promoting instability.
Heat Dissipation:
Material Thermal Conductivity: High-conductivity materials (e.g., copper alloys) help transfer heat away from the interface.
Active Cooling: Forced air, oil mist, or dedicated cooling channels/jackets in the housing are often necessary to maintain a stable temperature.
Thermal Insulation: In some cases, insulating the bearing from a high-temperature heat source (e.g., with a heat shield) can be more effective than trying to cool it.
4. Clearance and Dimensional Stability
Running Clearance: The design must account for "cold" assembly clearance and "hot" running clearance. The final operating clearance under HTHP conditions must be sufficient to maintain a lubricant film and avoid seizure, yet tight enough to control vibration and maintain hydrodynamic action.
Creep and Stress Relaxation: At high temperatures, materials can slowly deform under constant load (creep). The bearing design and material must resist this to maintain geometry and preload over time.
5. Structural Integrity and Load Capacity
High-Pressure Effects: External pressure can cause housing distortion, altering the bearing's internal geometry and clearance. The housing must be rigid enough to resist these pressures.
Dynamic Loads: The bearing material must have sufficient fatigue strength to withstand cyclic loads at high temperature, where material strength is typically reduced.
6. Environmental and Chemical Compatibility
Oxidation and Corrosion: High temperatures accelerate oxidation. Materials must be selected to resist oxidation in air or corrosion in the presence of process gases or chemicals.
Atmosphere: In inert or vacuum environments (e.g., aerospace, semiconductor), the choice of materials and lubricants is further constrained (e.g., volatile components from oils are unacceptable).
Summary Table of Considerations
| Design Consideration | Key Challenges in HTHP | Potential Solutions |
|---|---|---|
| Material Selection | Loss of strength, seizure, wear | Copper/silver alloys, high-temp polymers (PEEK, PI), solid lubricant composites, superalloys. |
| Lubrication | Oil degradation, carbonization | Solid lubricants (Graphite, MoS₂), high-temp synthetics, gas lubrication. |
| Thermal Management | Heat buildup, differential expansion | Active cooling, high-conductivity materials, careful CTE matching, insulation. |
| Clearance & Fit | Seizure (clearance loss) or instability (clearance gain) | Precise calculation of hot running clearance, interference fits. |
| Structural Integrity | Housing distortion, creep, reduced fatigue strength | Robust housing design, materials with high hot-strength and creep resistance. |

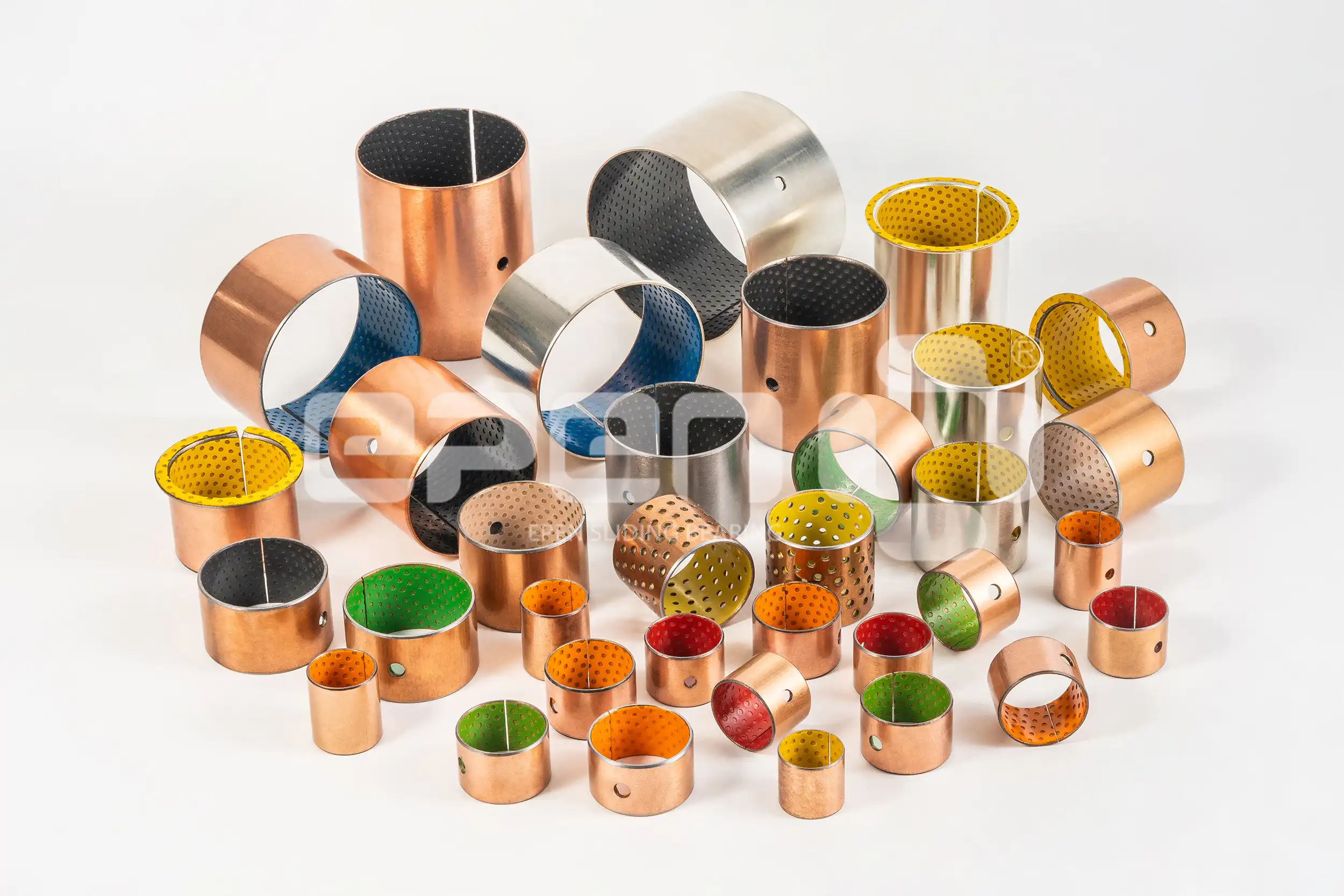

EPEN Bushing suitable for for high-temperature and high-pressure environments
Structural Design and Performance Optimization
Clearance and Tolerance Considerations
Proper clearance and tolerance design is crucial for plain bearings operating in high-temperature and high-pressure environments. The internal geometry of the bearing could change due to expansion and contraction caused by changes in temperature. To get optimal performance across the board, engineers need to set clearances taking these thermal impacts into consideration.
The importance of keeping correct clearances increases in high-pressure settings. enough friction and heat generation can occur with insufficient clearance, whereas instability or lower load-carrying capability can occur with enough clearance. To optimize clearances for specific operating conditions, advanced modeling approaches like finite element analysis can be utilized.
Load Distribution and Stress Analysis
Effective load distribution is essential for maximizing the performance of plain bearings under extreme conditions. Designers must carefully analyze the expected load patterns and ensure that the bearing geometry promotes even stress distribution. This may involve incorporating features such as chamfers, grooves, or variable wall thicknesses to optimize load-carrying capacity.
As a result, stress analysis techniques, such as CAE software, are vital for forecasting how bearings will react to different loads. In order to optimize the bearing design and minimize the danger of fatigue failure or excessive deformation, engineers can use these tools to identify probable stress concentrations.
Surface Finish and Texture Optimization
The surface finish of plain bearings significantly impacts their performance in high-temperature and high-pressure environments. Improved wear resistance, reduced friction, and enhanced lubricant retention are all possible outcomes of a precisely regulated surface texture. Surface patterns that maximize hydrodynamic lubrication and decrease asperity contact can be produced using advanced manufacturing techniques like micro-pitting or laser texturing.
In some cases, composite surface treatments combining hard coatings with low-friction top layers can provide excellent wear resistance and low friction properties. The better performance in harsh environments can be achieved by customizing these multilayer coatings to specific operating circumstances.
Conclusion
A multi-pronged strategy including material qualities, thermal management, lubrication tactics, and structural optimization is needed to design plain bearings for high-pressure and high-temperature settings. Engineers may design plain bearings that can endure harsh environments and yet work reliably by using adequate cooling and lubrication systems, improving the geometry of the bearings, and paying close attention to the surface characteristics. Plain bearings' capabilities in these demanding applications will be further enhanced as technology develops through the use of new materials and design techniques.
FAQs
1. What are the most common materials used for plain bearings in high-temperature environments?
Common materials include nickel-based superalloys, ceramic materials like silicon nitride, and advanced polymer composites.
2. How can lubrication be maintained in high-pressure applications?
Hydrostatic or hydrodynamic lubrication systems, as well as self-lubricating materials, can be used to maintain lubrication under high pressure.
3. What role does surface finish play in plain bearing performance?
Surface finish affects lubricant retention, friction, and wear resistance. Optimized surface textures can significantly improve bearing performance in extreme conditions.
