Key Points for Sliding Bearing Design in High-Temperature/High-Pressure Environments

Introduction

Sliding bearings，also known as plain or journal bearings, are critical components in heavy machinery such as turbines, compressors, and industrial pumps. When operating in high-temperature (HT) and high-pressure (HP) environments, their design becomes exponentially more challenging. Conventional design approaches often fail, leading to premature wear, seizure, or catastrophic failure. This document outlines the key considerations for designing reliable sliding bearings for these extreme service conditions.

Several important considerations must be carefully considered when designing sliding bearings for high-pressure and high-temperature situations. The selection of materials, control of temperature, methods of lubrication, and structural integrity are all part of this. Engineers need to make sure things work well even when the temperature drops, the material is resistant to wear, and the load can be supported. By paying close attention to these important details, designers can make sliding bearings that last a long time, work reliably, and efficiently in demanding industrial applications including turbomachinery, heavy-duty machinery, and automobile engines.

1. Material Selection: The Foundation of Performance

The choice of bearing material is paramount and must satisfy conflicting demands: high strength, compatibility with the shaft, and stability at elevated temperatures.

High-Temperature Strength: Materials must retain their mechanical strength and resist thermal softening.

Bronze Alloys: Modified phosphor bronzes with additions of lead or tin for improved embeddability, suitable for moderate temperatures.

Babbitt (White Metal): Excellent conformability and embeddability but limited to lower temperatures (<150°C) due to low strength. Not typically recommended for severe HT/HP.

Aluminum Alloys: Offer good strength and corrosion resistance at higher temperatures than Babbitt.

High-Performance Polymers: PEEK (Polyether Ether Ketone), PI (Polyimide), and PTFE (Polytetrafluoroethylene) composites filled with carbon, graphite, or bronze can withstand temperatures up to 300-350°C while providing self-lubrication.

Specialty Materials: For the most extreme conditions, cermets, silver-based alloys, or even graphite are used.

Compatibility & Wear Resistance: The material pair (shaft and bearing) must resist adhesion and galling. Dissimilar materials are often preferred to prevent weldment under high load and temperature.

2. Lubrication System Design: Ensuring a Robust Fluid Film

A continuous and reliable lubricant film is the lifeline of a sliding bearing. In HT/HP environments, lubricant degradation is a primary concern.

Lubricant Selection:

Synthetic Oils: Superior to mineral oils, offering higher oxidation stability, higher viscosity index, and a wider operating temperature range.

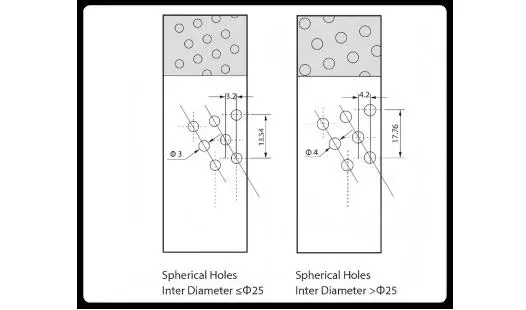

Solid Lubricants: Molybdenum Disulfide (MoS₂) and Graphite are essential when liquid lubrication is impractical. They can be impregnated into the bearing material or applied as coatings.

Greases: High-temperature, lithium-complex or clay-based greases can be used, but their service life and cooling capability are limited.

Cooling and Circulation: Forced-feed lubrication systems are almost mandatory. They serve two purposes:

Form a Hydrodynamic Film: To separate the shaft from the bearing surface.

Remove Heat: Act as a coolant to carry away the frictional and process heat, preventing thermal runaway.

3. Thermal Management & Structural Analysis

Heat must be managed proactively, not just reacted to.

Thermal Deformation Analysis: Components expand at different rates when heated. Finite Element Analysis (FEA) is crucial to model:

Bearing Clearance: The designed cold clearance must be optimized to account for thermal expansion of both the shaft and the housing, ensuring it does not become too small (risk of seizure) or too large (loss of hydrodynamic effect).

Thermal Stresses: Uneven temperature gradients can cause distortion, leading to edge loading and failure.

Cooling Features: Incorporate dedicated cooling channels in the housing or bearing shell to circulate coolant. Heat pipes can also be an effective solution for localized hot spots.

4. Clearance and Geometry Optimization
The operational clearance is a critical design parameter that changes with temperature.

Diametral Clearance: Must be carefully calculated to accommodate thermal growth, minimum oil film thickness, and manufacturing tolerances. A "hot clearance" analysis is essential.

Bearing Geometry: The length-to-diameter (L/D) ratio influences load capacity, flow rate, and heat generation. A smaller L/D ratio is often beneficial for HT applications as it improves side flow for cooling and reduces the risk of thermal crowning.

5. Surface Engineering and Tribology
The surface properties dictate the friction and wear behavior.

Surface Coatings: Applying hard, low-friction, and thermally stable coatings can dramatically enhance performance. Examples include:

DLC (Diamond-Like Carbon): Excellent friction and wear properties.

PTFE-based coatings: For reduced friction in boundary lubrication.

Thermal Spray Coatings: (e.g., WC/Co or Cr₃C₂/NiCr) for extreme wear resistance.

Surface Finish: A super-fine finish on both the shaft and bearing is critical to minimize abrasive wear and promote the formation of a continuous lubricant film.

Lubrication and Wear Resistance in Extreme ConditionsHigh-Performance Lubricants

Lubrication plays a vital role in sliding bearing performance, especially under high-temperature and high-pressure conditions. Conventional lubricants often break down or lose their effectiveness in extreme environments, necessitating the use of specialized formulations. Lubricants are essential, but engineers need to be careful when choosing ones because they can't afford to lose their film strength or viscosity even when heated to high temperatures.

Synthetic oils, such as perfluoropolyethers (PFPEs) or certain silicone-based lubricants, offer excellent thermal stability and can operate at temperatures exceeding 300°C. For even more extreme conditions, solid lubricants like molybdenum disulfide or graphite may be employed, either as coatings or as additives in composite materials. In order to maintain continuous lubrication even in harsh settings, some modern bearing designs use self-lubricating materials. These materials release lubricants while the bearing is in operation.

Wear-Resistant Coatings and Surface Treatments

To enhance wear resistance in high-temperature and high-pressure applications, sliding bearings often benefit from specialized coatings or surface treatments. Because they lessen the effects of friction and adhesive wear, these protective layers can greatly increase the bearings' service life.

Coatings such as diamond-like carbon (DLC) are ideal for several high-temperature sliding applications due to their low friction coefficients and extraordinary hardness. Plasma-sprayed ceramic coatings, such as chromium oxide or zirconium oxide, offer excellent wear resistance and can withstand extreme temperatures. In some cases, designers opt for diffusion treatments like nitriding or carburizing to harden the bearing surface, improving its resistance to both wear and thermal fatigue.

Optimized Surface Textures

An novel method to improve the performance of sliding bearings in harsh environments is surface texturing. Bearing surfaces can have their lubricant retention, friction, and heat dissipation improved through the meticulous designing of microscopic patterns.

Laser-etched microgrooves or dimples can create hydrodynamic pressure zones that help maintain a lubricant film even under high loads or temperatures. These textures can also trap wear debris, preventing it from circulating and causing further abrasion. Some advanced bearing designs incorporate asymmetric surface patterns that promote lubricant flow and enhance load-carrying capacity. The optimization of these surface textures often involves sophisticated computational modeling to achieve the ideal balance between friction reduction, wear resistance, and thermal management.

Conclusion

Designing sliding bearings for high-temperature and high-pressure environments is a multidisciplinary challenge that integrates materials science, tribology, thermal analysis, and mechanical design. Success hinges on:

Selecting a material system with adequate high-temperature strength and stability.

Implementing a robust lubrication and cooling system.

Performing detailed thermal-structural analysis to predict and manage deformation.

Optimizing operational clearance and geometry for the actual service conditions.

Leveraging surface engineering to enhance tribological performance.

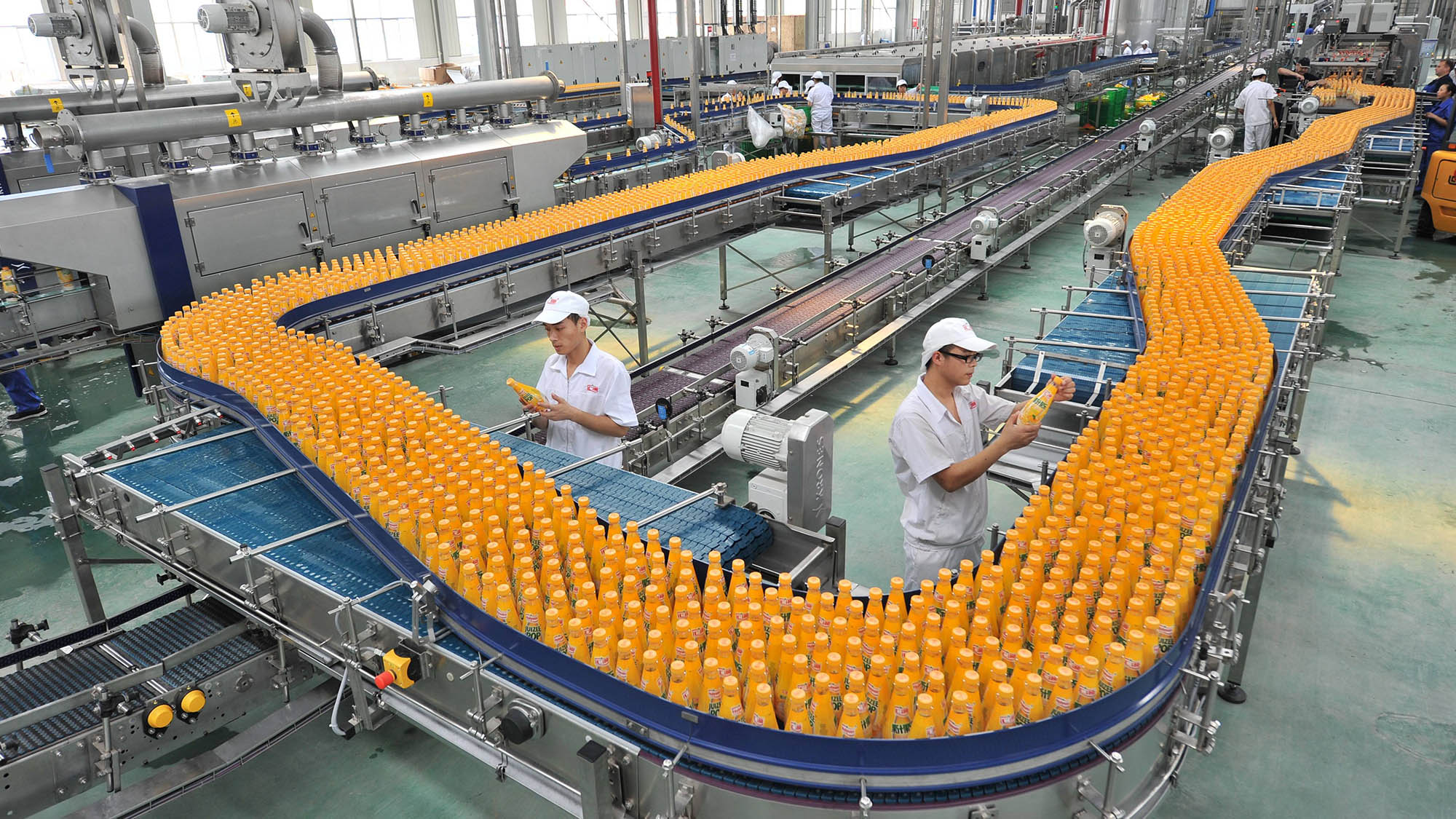

The application of EPEN sliding bearing product series in food machinery field

FAQs1. What are the primary challenges in designing sliding bearings for high-temperature environments?

Choose materials with high thermal stability, control thermal expansion, provide adequate lubrication, and keep the structure intact in harsh environments; these are the key challenges.

2. How do advanced surface treatments improve sliding bearing performance?

Bearing life in extreme conditions can be prolonged with the use of modern surface treatments such as plasma-sprayed ceramics or DLC coatings, which increase resistance to wear, decrease friction, and improve heat dissipation.

3. What role does computational modeling play in sliding bearing design?

Computational modeling, including FEA and CFD, helps optimize bearing geometry, predict performance under various conditions, and refine designs for improved efficiency and reliability.
