Why Custom Flange Bushings are Essential for Modern Robotics

Modern robotics demands precision components that can withstand extreme operational conditions while maintaining flawless performance. Custom flange bushings emerge as indispensable elements in robotic systems, offering tailored solutions that standard components simply cannot match. These specialized bearings provide crucial support for robotic joints, arms, and rotating assemblies, where dimensional accuracy, load capacity, and durability directly impact system reliability. As robotics technology advances into more demanding applications—from automated manufacturing to hazardous environment operations—the role of customized bearing solutions becomes increasingly critical for engineers and procurement teams seeking optimal performance and longevity.

Understanding Flange Bushings and Their Role in Robotics

What Makes Flange Bushings Unique

A flange bushing is a complex type of bearing that has a cylinder-shaped tube with a flanged head built in at one end. This unique shape does two things: it handles radial loads through the cylinder bore and axial thrust loads through the flange surface at the same time. During installation, the flange acts as a mechanical stop to keep the bushing from moving inside the housing. This is an important feature for robotics applications where positional accuracy directly affects operational precision.

Flanged versions combine more than one purpose into a single part, while simple sleeve bushings only deal with rotational forces. This design economy cuts down on the number of parts needed for artificial joints and pivot points and the difficulty of putting them together. We've seen that reducing the number of parts in robotic systems leads to higher dependability and easier repair procedures.

Core Mechanical Principles in Robotic Applications

Bearing parts in robotic systems have to meet special mechanical requirements. The operational profile includes changing loads, changing directions quickly, and the need for precise positioning, all of which are hard for traditional bearing solutions to handle. In these situations, flange bushings work best because they can keep the clearances small even when the loads change, and their friction properties stay the same throughout the duty cycle.

Edge loading situations that usually cause standard bushings to fail early are avoided because the load is spread across both the radial and axial sides. The flange bushing controls complex force vectors that would otherwise focus stress on weak spots when a robotic arm moves forward or backward. When compared to regular plain bearings, this ability to spread load makes the part last a lot longer.

Material Selection for Robotic Environments

In robots, the choice of material has a big impact on how well a bushing works. Bronze metals are still popular because they don't wear down easily and conduct heat well, which makes them good for situations where they need to be used continuously. These PTFE-based composite bushings have great low-friction qualities and can lubricate themselves, so sealed robotic joints don't need any other lubrication systems.

Solid lubricants mixed into sintered metal composites make them perfect for uses that need to be able to handle a lot of weight and not need any maintenance. These materials can handle the oscillating movements that robotic actuators do without showing stick-slip behaviour that makes it hard to accurately place things. Steel-backed composite bushings have a rigid structure and polymer coatings that make them strong. They work well in robotic uses with high loads and keep their shape even when the temperature changes.

Challenges of Standard Flange Bushings in Modern Robotics and Why Customization Matters

Dimensional Mismatch Issues

Off-the-shelf flange bushings don't always fit perfectly with the shapes of robotic systems. Modern robots are small and have to fit into small spaces, so they need exact measurements of their dimensions. Standard catalogue items often need design choices that hurt performance or require expensive changes to parts that go with them. Even a difference of 0.1 mm in size can cause unwanted clearance, which can cause placement mistakes that build up along complicated motion chains.

We've seen many times when buying teams chose standard bushings to cut down on wait times, only to have problems with how they fit together during assembly. For proper load distribution and alignment, the flange thickness, bore diameter, and overall length must all be exactly the same. By making bushings to exact specs from the start of the planning process, custom production gets rid of these compatibility problems.

Dynamic Load Limitations

Standard bushings weren't made to handle the complicated loading patterns that robots use. When things speed up and slow down quickly, they create dynamic forces that are much stronger than the static load ratings. When emergency stops or collisions happen, they put a lot of stress on the bushings that catalogue parts can't reliably handle over the course of their useful lives.

Most standard product designs are made to work best with either static loads or continuous spinning, not the changing duty cycles that robots needs. Custom engineering lets you choose materials, heat processes, and strengthened shapes that are all made to fit the exact load profile. This customised method makes reliability much better in automation settings that need it.

Environmental Exposure Challenges

Industrial robots work in a wide range of settings, from cleanrooms that are completely germ-free to dusty mines and harsh sea environments. Standard flange bushings don't have the special surface treatments and materials that are needed for these temperatures. Changing temperatures, letting contaminants in, and being exposed to chemicals all quickly break down standard bushings, causing them to fail without warning and cause expensive downtime.

Customisation helps the environment by choosing the right materials and covering them with protective coatings. In saltwater settings, hard-anodized aluminium bushings don't rust, and sealed composite designs keep dust out of mine equipment. Temperature-stable materials work the same way in all temperature ranges, which is important for outdoor robotics and high-temperature processing.

Real-World Performance Improvements

An industrial automation company called us to tell us that their automatic palletiser systems were breaking down over and over again. During fast pick-and-place operations, the combined rotational and thrust loads were wearing out the standard bronze bushings in the wrist joints too quickly. We made custom composite flange bushings with the best shape and material mix after looking at the motion profile and load properties.

The results were impressive: the life of the bushings grew by 340%, maintenance plans were pushed back from three times a year to once a year, and the accuracy of positioning got a lot better. The custom solution got rid of unplanned downtime that was costing the business about 120 hours a year. These real benefits show how customised parts have a direct effect on how well operations run and how much it costs to own everything.

How to Choose the Right Custom Flange Bushing for Robotics Applications

Defining Application-Specific Requirements

Selecting custom flange bushings begins with a detailed requirements assessment. Peak forces in worst-case situations and regular operating circumstances must be included in load analysis. You should calculate the greatest total radial and axial loads, including shock loading and overload safety factors. Knowing the duty cycle—continuous or intermittent—affects material choice and lubrication.

Environmental conditions greatly impact joint performance. Material selection and protection depend on temperature, humidity, chemical exposure, and pollution. Space limits dimensions, and mounting arrangements and precision depend on how the new item fits with previous ones. By laying out these characteristics, you may create a specification foundation for successful customization.

Essential Technical Specifications

Dimensional restrictions affect robot accuracy. You should specify the hole diameter, flange angle, and surface treatment when buying custom bushings. To reduce edge loading, we recommend bore tolerances within H7 grades and flanges perpendicular to the surface with a maximum of 0.05 mm runout for precision purposes.

Material compatibility goes beyond mechanics. Resistance to galvanic corrosion when metals interact, matching thermal expansion with mating components, and industry-specific regulations are also included. Self-lubricating, grease-lubricated, or oil-lubricated materials and features like oil retention pockets or lubrication slots vary.

Comparative Analysis with Alternative Solutions

Ball bearings are less frictional than bushings but may not withstand shocks or dirt. Stiff contact points in rolling element bearings cause noise and motions that make accurate work difficult. Damping flange bushings smooth robotic joint motion profiles. This benefits collaborative robots that operate near humans.

Thrust washers and sleeve bushings may act like flange bushings, but they add components and complicate setup. Custom flange bushings' combination design reduces parts, simplifies installation, and eliminates assembly errors. Robotic systems that are hard to fix after setup benefit from this consolidation.

Manufacturer Collaboration Advantages

Bearing manufactures' early involvement in planning allows for many improvements. Application engineering-savvy suppliers may spot issues before prototype. Based on prior successes with comparable issues, we offer design improvements that make them cheaper, simpler, or more effective.

Technical support distinguishes quality providers from commodity ones. Material testing, finite element analysis, and application-specific validation testing ensure tailored bushing performance before manufacturing. Suppliers with strong tech teams may assist address unexpected installation or operating issues.

Procurement Insights: Buying Custom Flange Bushings for Robotics

Market Landscape Overview

In the global bearing market, there are both large, well-known international companies and small, specialised companies that focus on making unique solutions. Major suppliers like SKF, Timken, and NSK have large catalogues of standard products that can't be changed much. These catalogues are mostly used for high-volume uses with standard needs. These leaders in the industry are great at consistent quality and having global distribution networks, but they aren't always flexible enough for robotic applications that are unique to their company.

Specialised manufacturers of plain bearings can make your order more precisely, have shorter lead times, and offer more flexible minimum order quantities. These companies specialise in building that is specific to a job, and they offer materials and shapes that aren't found in regular catalogues. The trade-off is that they might not have as many technical resources as multinational companies, but they usually make up for it by having more focused expertise and deeper knowledge in certain application domains.

Custom Solution Advantages

You can tell that custom flange bushings make a device more reliable and extend its useful life. When you build parts correctly, you don't have to make the trade-offs that come with changing standard parts to specific needs. Dimensional optimisation gets rid of stress concentrations that lead to early failure, and material selection is based on real-world conditions instead of generic requirements.

Lifecycle cost analysis always favours custom solutions, even if they cost more at first. Longer periods between replacements, less downtime, and better system performance more than make up for higher purchase costs. We have proof of situations where custom bushings, which cost 40% more than standard ones, cut total bearing costs by 60% by increasing service life and getting rid of secondary failures caused by bushing flaws.

Practical Procurement Considerations

For lead time management to work, providers need to be involved early on in the planning stages of a project. Depending on the supply of materials and the level of difficulty of the manufacturing process, making a custom bearing usually takes 4 to 8 weeks. Prototyping takes an extra two to three weeks, but it's worth it to check the performance before committing to large-scale production. Setting realistic deadlines keeps people from making hasty decisions that hurt quality or require expensive fees to speed things up.

The way that different suppliers set their bulk prices is very different. Most of the time, price breaks happen at 100, 500, and 1,000 units, but the exact points depend on how the product is made and how much the materials cost. We tell procurement teams to make accurate predictions about their yearly needs so they can get better prices and avoid having to pay too much for inventory.

Supplier Evaluation Criteria

Quality standards give you a basic idea of how well a product can be made. Systematic quality management is shown by ISO 9001 certification, while industry-specific certifications, such as AS9100 for aircraft or IATF 16949 for cars, show competence in tough areas. When regulatory compliance calls for proven material properties, material certifications and traceability documentation become very important.

Customisation options go beyond just changing the size; they also include custom material formulas, surface treatments, and graphic shapes that are only available to that product. You can find out how deep a seller goes into custom manufacturing by looking at their engineering staff's qualifications, their in-house testing facilities, and their track record with similar projects. Referrals from current customers in similar fields give you useful information about dependability and service quality that marketing materials can't.

Flange Bushing Installation and Maintenance Best Practices for Robotics

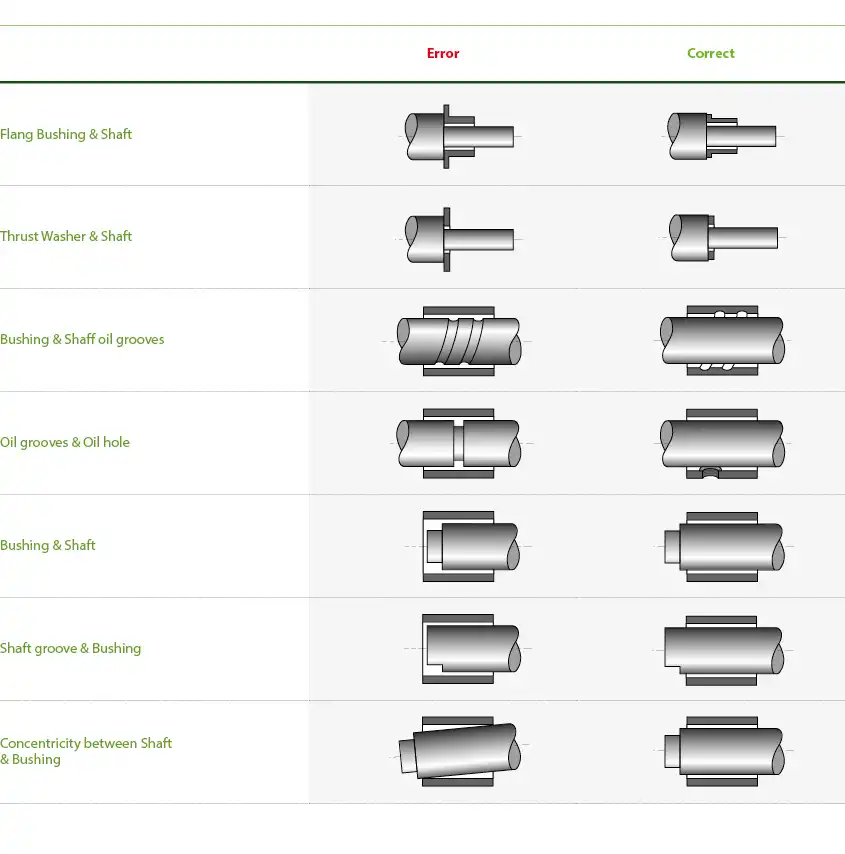

Proper Installation Procedures

The function and lifespan of a bushing depend on how well it is mounted. For press-fit installs, you need to use controlled force to get the interference you want without breaking the housing or bushing. We suggest using arbour presses that can measure force instead of clubs or mallets, which could cause damage. The press-fit force should slowly rise until the flange touches the housing face. It should then stop right away to avoid over-insertion.

Maintaining proper orientation during installation stops cocking, which spreads the force unevenly. To make sure the flange stays straight on the bore axis, alignment fixtures or pilot tools are used to guide bushings concentrically into bores. Checking the alignment with dial indicators before the final seating finds any problems before they become permanent installation flaws.

Some common installation mistakes are bringing in dirt during handling, not cleaning the mating surfaces well enough, and not checking the dimensions before putting them together. When contaminants get stuck between the bushing and the housing, they cause stress risers that cause the housing to fail before it should. Clean building methods that use lint-free cleaners and safe gloves make installation quality much better.

Maintenance Schedules and Lubrication Strategies

How often you need to maintain a bushing depends on its material and how it is used. Self-lubricating composite bushings usually don't need any maintenance until they need to be replaced. Bronze bushings, on the other hand, need to be re-oiled every so often. To take into account how things are actually used, we suggest setting review times based on working hours instead of calendar dates.

Different types of materials need different amounts of lubrication. Sintered brass bushings work better when they are soaked in oil at first and then re-lubricated with the right greases every so often. Most of the time, PTFE composite materials work dry or with very little grease at first. Too much or too little lubrication is just as bad because it attracts dirt and debris that speed up wear. Following the lubrication instructions provided by the manufacturer will ensure the best performance.

Wear Detection and Failure Prediction

Early discovery of wear stops catastrophic breakdowns that damage expensive robotic parts. Positioning errors, repeated mistakes, or loud rattling during motion are all signs of increased clearing. By using precise tools to measure the bushing hole diameter several times, you can find wear patterns that show mismatch or uneven loading.

Using infrared cameras for thermal monitoring can find too much friction before it shows up as wear. Temperature rises of 10 to 15°C above usual working temperatures should be looked into. Grinding, squeaking, or clicking sounds are signs of lubrication failure or contamination damage that needs immediate attention.

During routine maintenance, a visual check shows the condition of the surface and the presence of contamination. Scores, galling, or discolouration are signs of not enough greasing or a problem with the materials. If the flange face is worn or deformed, it means that there is too much axial pressure or the fitting was done wrong. By writing down these findings, you can make trends data that can help you figure out when to replace something before it breaks down for no reason.

Repair Versus Replacement Decisions

Most of the time, worn flange bushings need to be replaced instead of being fixed. Using machining to try to fix worn surfaces usually leads to less accurate measurements and higher costs than replacing them. Large, expensive custom bushings are the only ones that don't need to be replaced. Specialised repair services can restore their geometry and apply wear-resistant coatings for a fraction of the cost of a new one.

Replacement timing optimisation weighs the cost of the part against the chance of failure and the cost of downtime. Replacing windows before they break during planned maintenance costs a lot more than replacing windows after the fact when they break during unplanned shutdowns. Condition tracking data helps make replacement choices based on facts, not just random plans. This makes the best use of parts without the risk of unexpected breakdowns.

Conclusion

Custom flange bushings are very important to the performance of current robots because they can solve problems that standard parts can't. Customised sizes, better materials, and engineering that is tailored to the application all work together to make improvements that can be seen in reliability, accuracy, and operational life. As robotics technology keeps getting better and can be used in more difficult situations, specialised bearing solutions become more important. When procurement teams and engineering managers invest in custom solutions, they get big returns in the form of less downtime, longer repair gaps, and better system capabilities. When robotics makers work together with experienced bearing sellers, they create competitive benefits that standard catalogue parts just can't match.

FAQ

1. What Distinguishes Flange Bushings from Sleeve Bushings?

The built-in flange makes these parts functionally and structurally different. For axial loads, you need separate thrust washers instead of sleeve bushings because they can only handle radial loads. Flange bushings combine these two tasks into one, making the assembly simpler while still ensuring accurate placement along the axes. The flange keeps the bushing from moving while it's in use and makes fitting easier by giving a clear fixing reference.

2. How Long Do Custom Flange Bushings Last in Industrial Robots?

Lifespan changes a lot depending on how it is used, how much weight it has, and what kind of material it is made of. In moderate-duty situations, self-lubricating composite bushings can usually last between 5,000 and 15,000 hours of use. If you properly grease and oil bronze bushings, they can last longer than 20,000 hours in ideal circumstances. Longevity may be cut to 2,000 to 5,000 hours in harsh environments or when heavy loads are applied. Custom engineering uses the best materials and shapes for each job, and by making specific design changes, they can often double or triple the life of a standard bushing.

3. Can Flange Bushings Withstand Harsh Robotic Operating Environments?

When properly defined, custom bushings work great in tough circumstances. Composite materials with solid lubricants built in keep dust and other contaminants out better than alternatives that use grease. Corrosion-resistant alloys and coatings keep things working in chemical processing and marine settings. Temperature-stable materials keep working well from very cold temperatures to 280°C for long periods of time. When normal bushings fail quickly in certain environments, solid performance is achieved by choosing the right materials and applying protection treatments that are specifically made for those conditions.

Partner with Epen for Superior Custom Flange Bushing Solutions

Jiashan Epen Bearing Co., Ltd. offers custom flange bushing solutions that improve the performance of robotic systems by combining advanced production skills with in-depth application engineering knowledge. Our wide range of materials, which includes metal-plastic composites, self-lubricating formulations, and specialised alloys, can be used to solve any robotic bearing problem. OEMs in the industrial automation, heavy machinery, and precision equipment sectors trust us to make flange bushings, and we offer expert help during the planning, prototyping, and production stages. Email our engineering team at epen@cnepen.cn to talk about your specific application needs and find out how custom bearing solutions can make your robotic systems more reliable and efficient.
