E94 Brief Description: E94 bearing E93 is basic research and development, surface hole arrangement rules may apply grease before assembly or after assembly, so that the work is easy to form the transfer film, reduce the friction coefficient. Having oil storage capacity, long cycle maintenance-free advantages. The products are widely used in agricultural machinery, forestry machinery, engineering machinery. E94 Bearings Size: E94 E94-F

EMT Brief Description EMT bi-metallic bushing is formed from steel strips with alloy lining material. The alloy lined surface can be machined oil grooves, holes, formed Indentations etc according to different application. It is suitable for high load, lower speed oscillation & rotation movement. EMT Oil Hole Design Oil Hole is necessary to design if EMT have lubricated sufficiently; the following oil hole design is recommended, which is also suitable for EMT series without special requirements. EMT Application Oil Hole is necessary to design if EMT have lubricated sufficiently; the following oil hole design is recommended, which is also suitable for EMT series without special requirements. EMT-1 Advantageous in high load carrying capacity, anti-impact, lower wear. Suitable for Mid-load capacity & Mid­higher Sliding velocitie. Bushings for Gearbox, Rocker arm, King Pin, transmission etc. EMT-2 Higher fatige strength & load carrying capacity, goos running characteristics at higher sliding velocities. Suitable for Mid-load capacity & Mid-Sliding velocitie . Bushings for lubricating oil pumps . After surface specifical treatment, Bushings for Main bushes of high speed internal-combustion engine, Connecting Rod etc. EMT-3 Very Good sliding Characteristics, good anti-seizure property, special material, Punched oil grooves & oil pockets are not feasible. Bushings suitable for hydraulic Pump,automatic gearbox. After surface specifical treatme EMT-4 Mid fatige strength & load carrying capacity, very good fatige strength & load carrying capacity, very good sliding characteristics . Bushings for half-bearing of high speed, lower load internal-combushtion engine, aircomressor, refrigerator, hypoid gearbox, hydraulic pump, gearbox etc. EMT-5 The material composition of the product conform to the requirements of the Ro HS, under certain conditions can replace the EMT-1, has good load pressure & good wear resistance. The disadvantage is that it cannot be used without oil lubricant. But has great advantage in a well-lubricated situation. Suitable for heavy & medium load, Medium & high speed, as well as large impact loads. EMT Bearings Size EMT

E90 Brief Description E90 bronze wrapped bushings are made of entirely bronze CuSn8. Because of material properties, the working surface rolled with diamond Indentations (standard Indentations) or stamped oil grooves according to detailed application. And it also has good performance of anti-corrosion caused by chemical and environments. During the operation, the grease & oil will be released from the indentations, which allow for long-term lubrication. Compare with machined bronze bearings; E90 can offer some advantages including thin wall, lower weight, cheaper cost, high load etc. It is suitable for high load, lower speed application like construction, transport, and agriculture machinery. E90 Bearings Size E90 E90-F

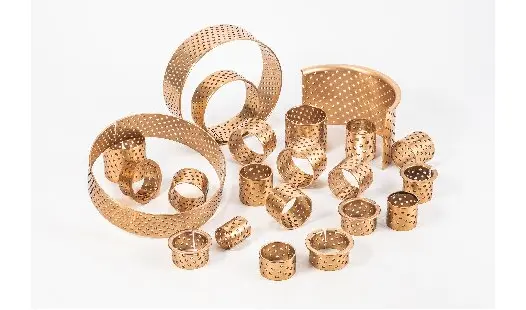

E92 Brief Description E92 is deriving from E90; the difference between E90 & E92 is Indentations on working surface, which substituted by throughholes. Theses holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication. It is suitable for high load, lower speed application like construction, transport, and agriculture machinery. E92 Bearings Size E92 E92-F

E93 Brief Description E93 is a high-density special copper bearing alloy as a matrix material CuSn rolled into having a carrying capacity, good wear resistance characteristics. Based on the good performance of copper easy processing and advanced tooling, E93 bearing surface of the strip can be processed to adapt to a variety of working conditions of oil pockets (standard products for the diamond oil hole), tank, so that the bearing can be stored in use a lot of grease, oil film at the beginning of work, to reduce the coefficient of friction, the work to extend the refueling interval period, effectively improve the bearing life. Compared with the traditional copper sleeve. E93 Bearings Size E93 E93-F
